1855-ST-C

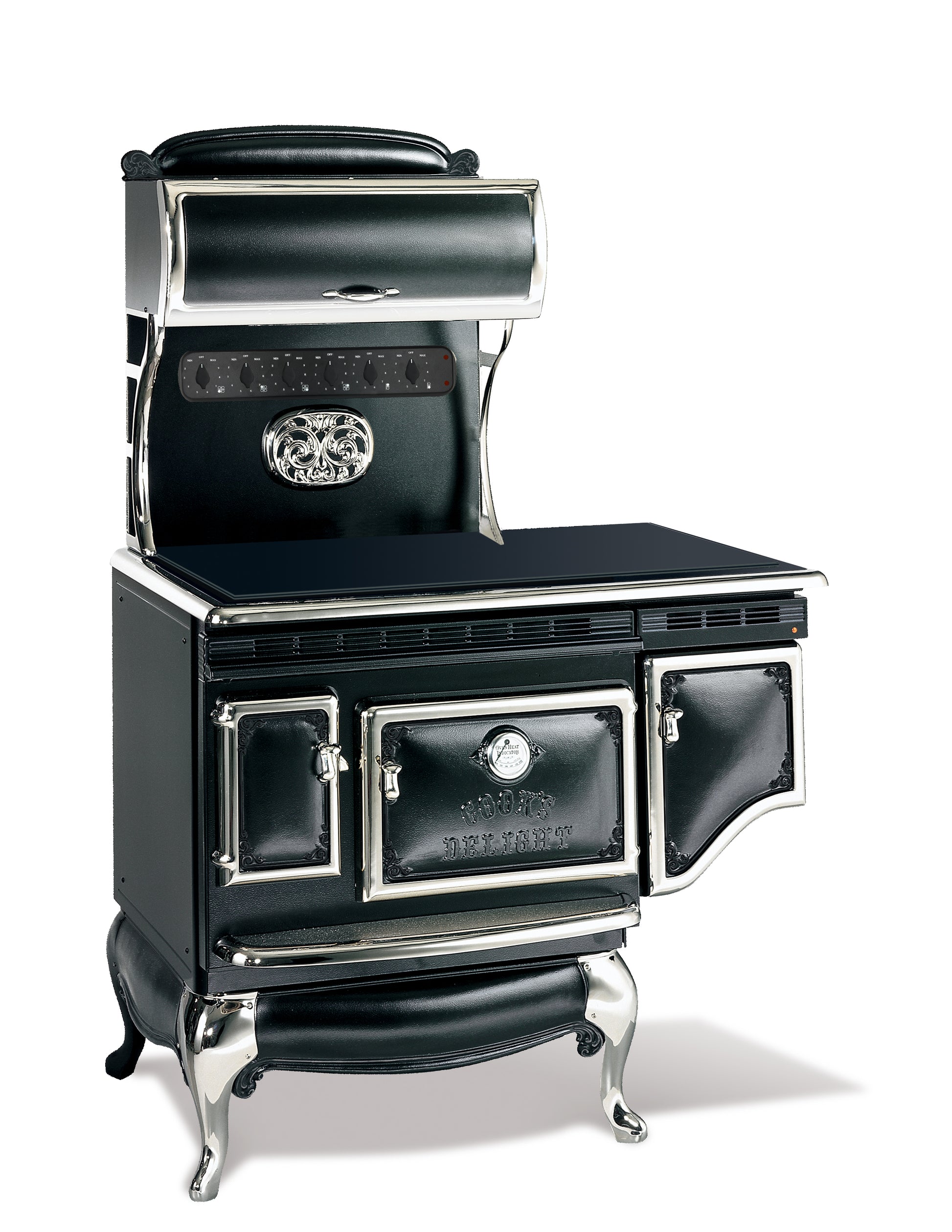

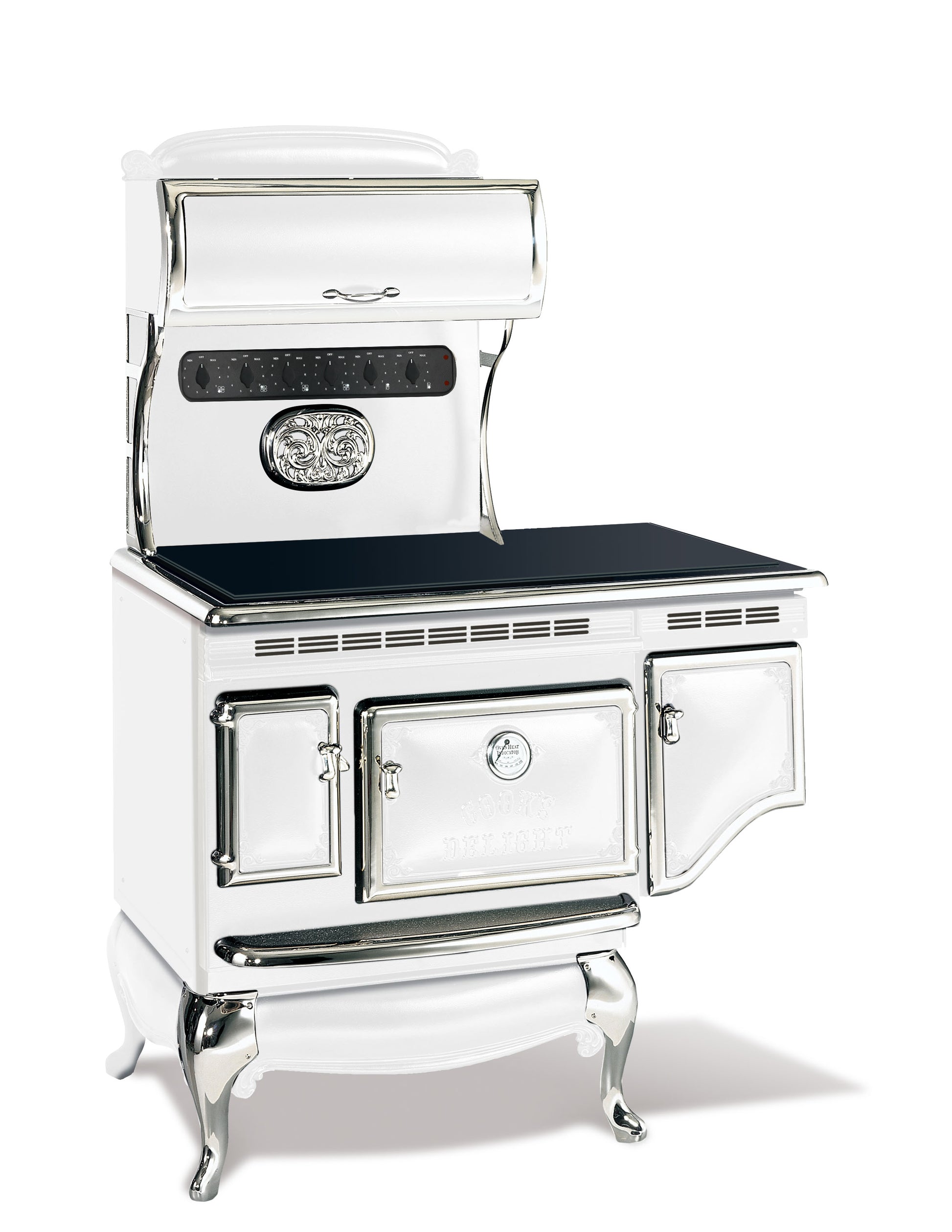

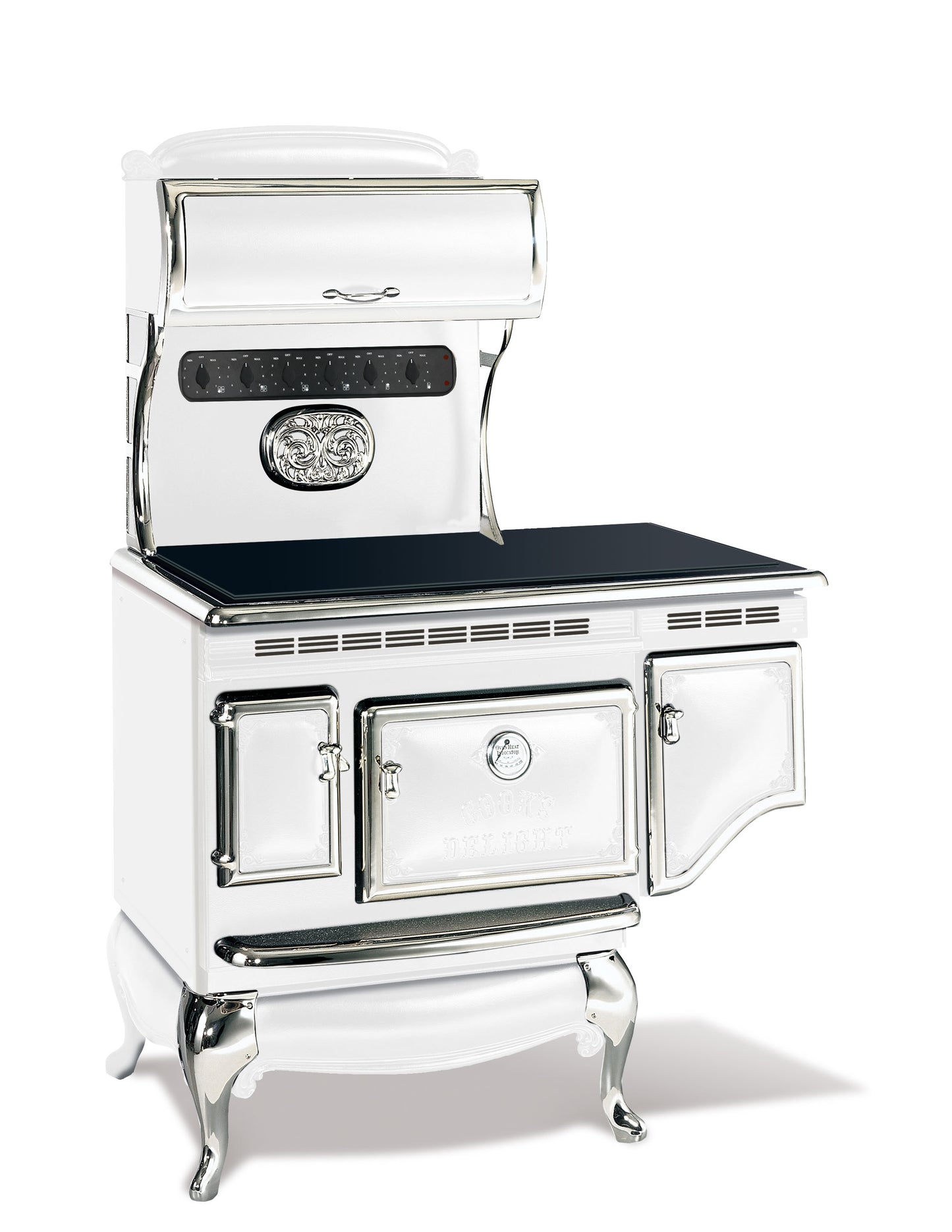

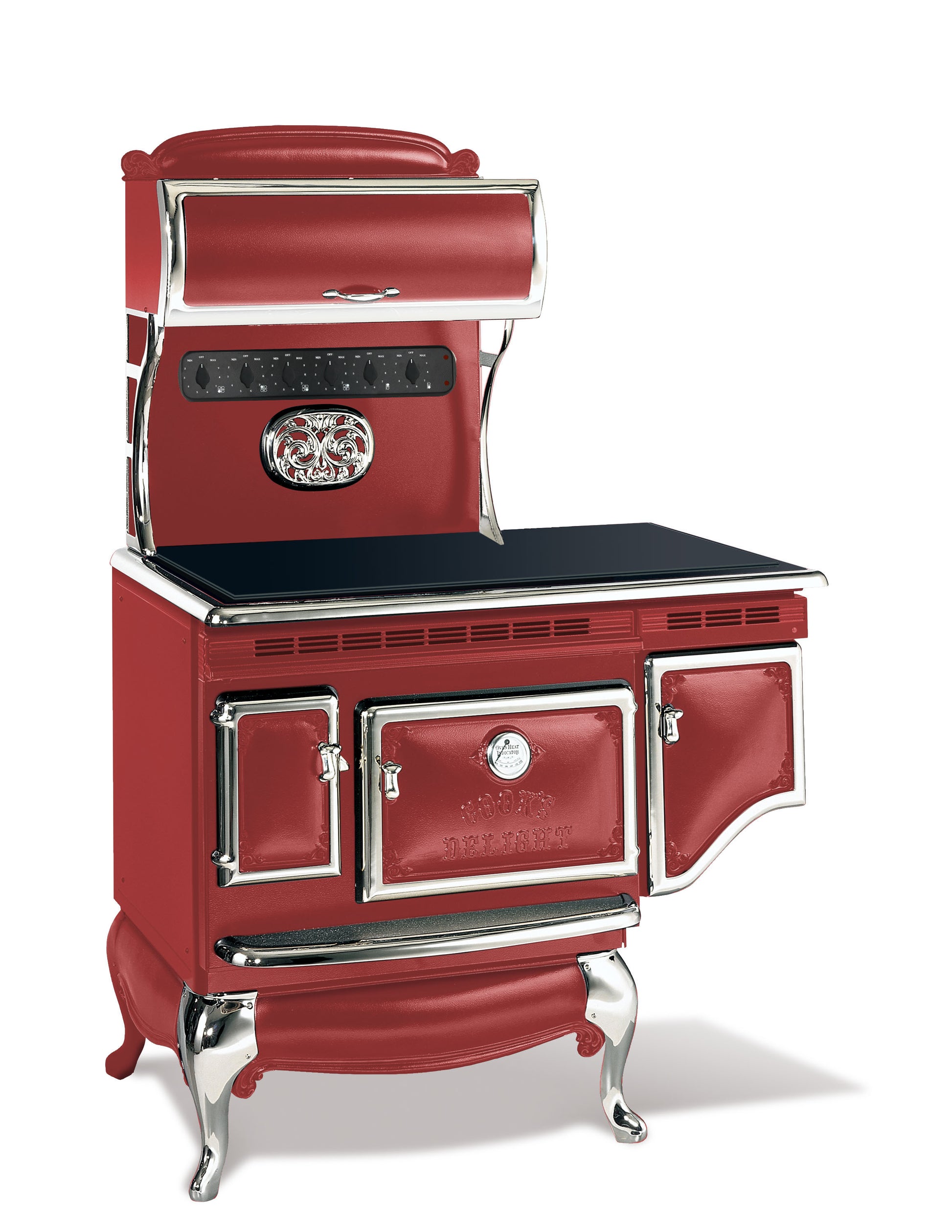

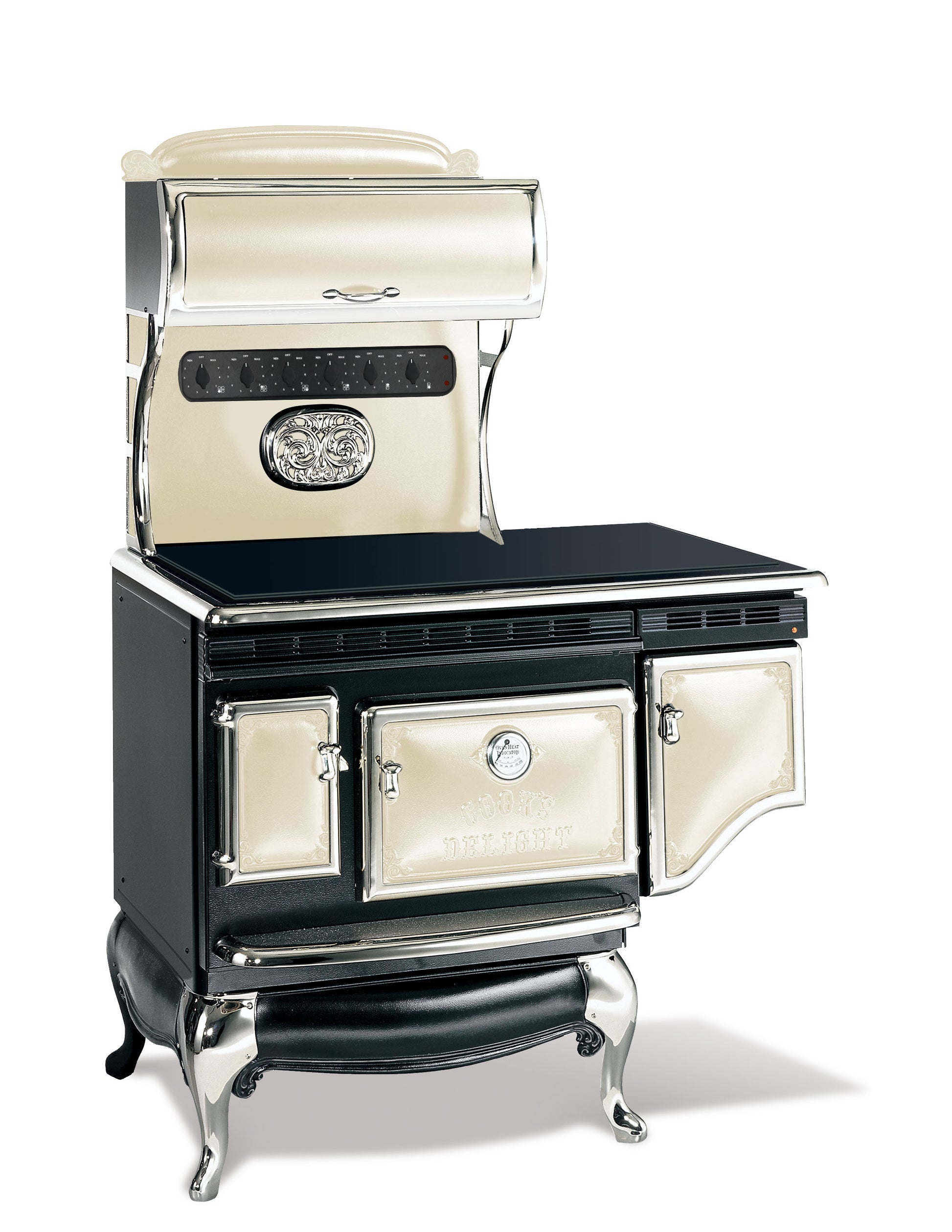

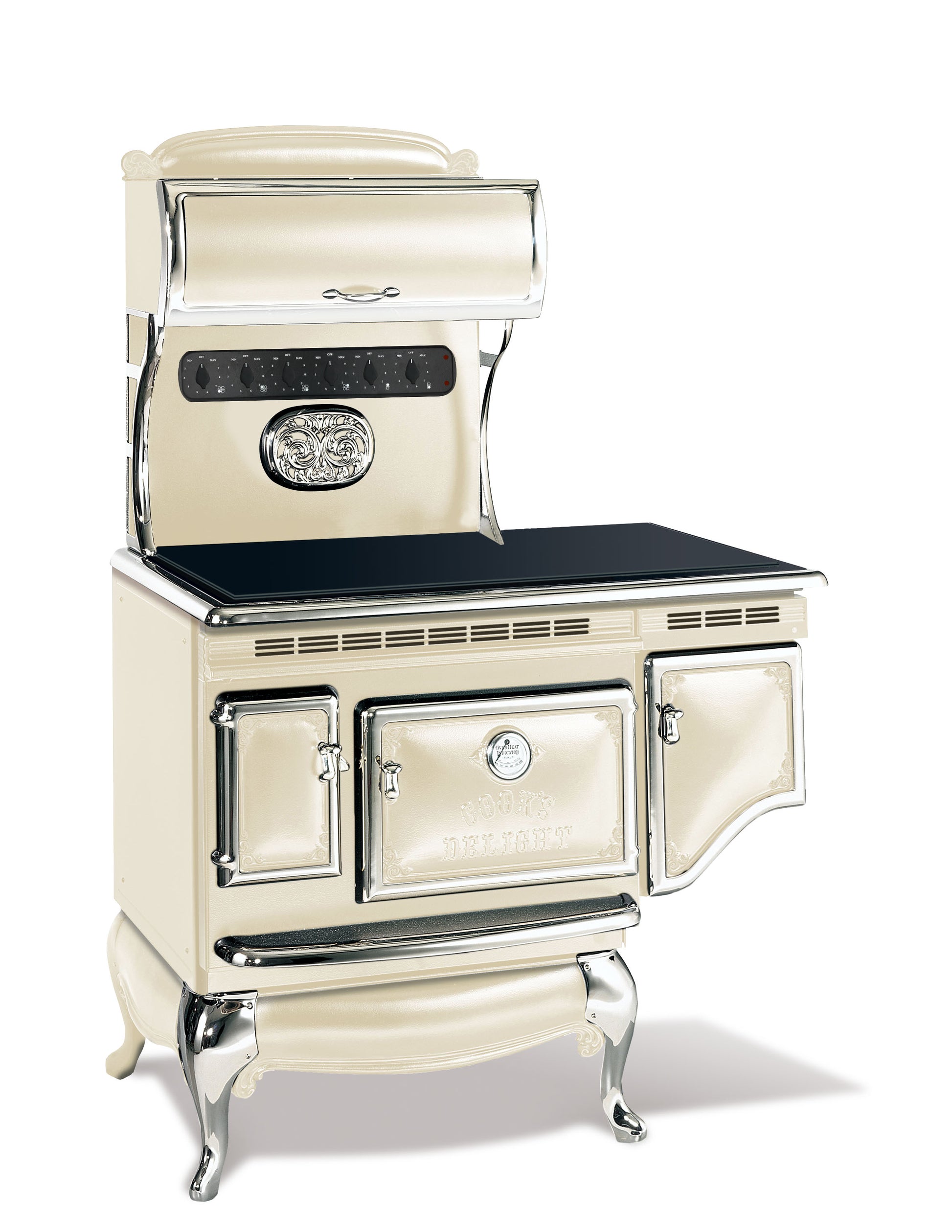

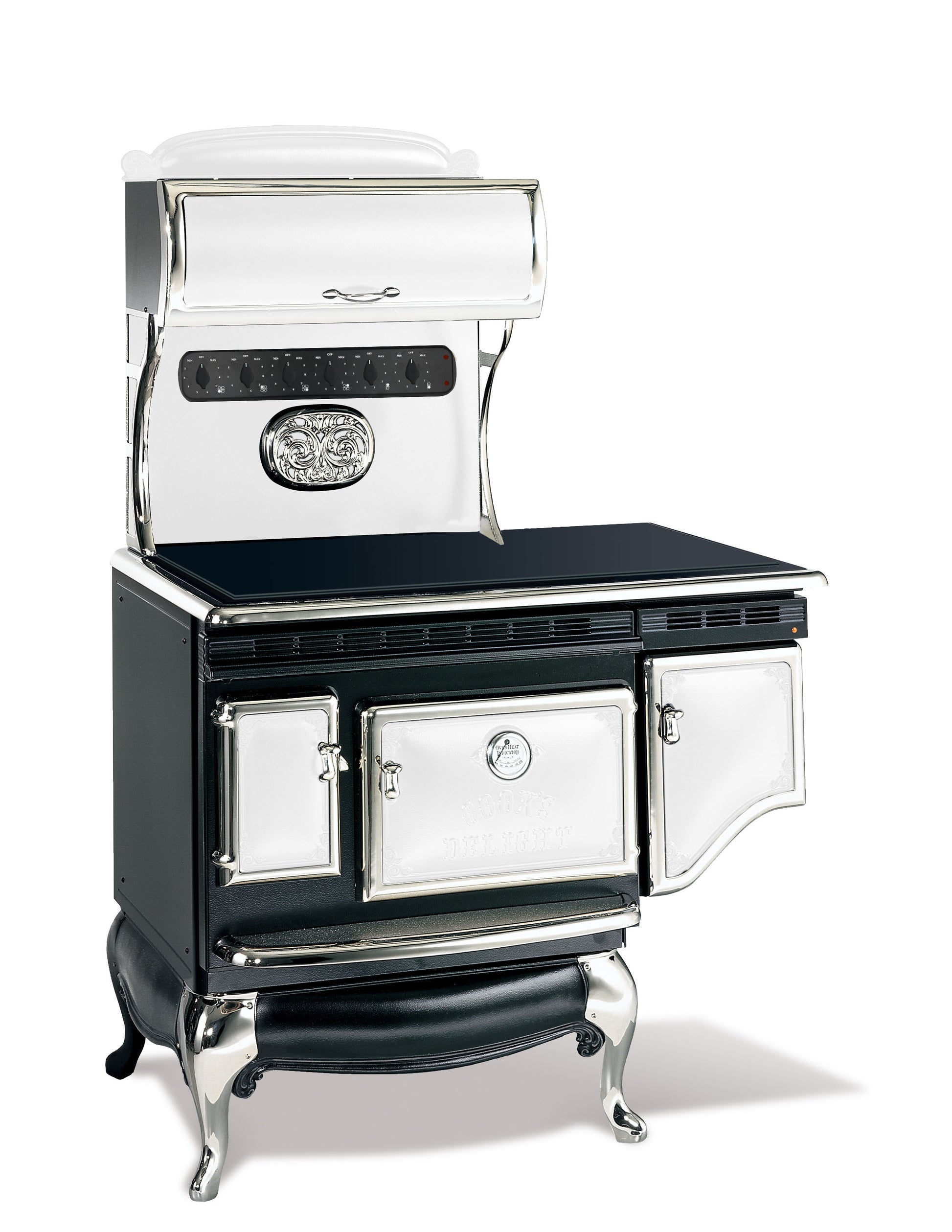

45" 6-burner electric smoothtop, self-clean convection

45" 6-burner electric smoothtop, self-clean convection

Price Range   $10595 - $15895
Regular price Sale price 1059500
Sale Sold out
Oven Capacity: 4.0 CU. FT. True Convection
Self-Cleaning Oven Dimensions: 25"W X 16H X 16 5/16D
Six High Speed Radiant Elements: Three 6” 1,500 Watt elements Three 8” 1,800 Watt elements

Warranty Information

Elmira appliances are warranted for one year, parts and labour. Range and wall oven burners and elements, fridge cooling systems, and microwave inverters are covered for an additional four years, parts only. Glass and painted or plated surfaces are not covered. An additional extended four-year warranty is available.

More Information

Download
Download
View full details

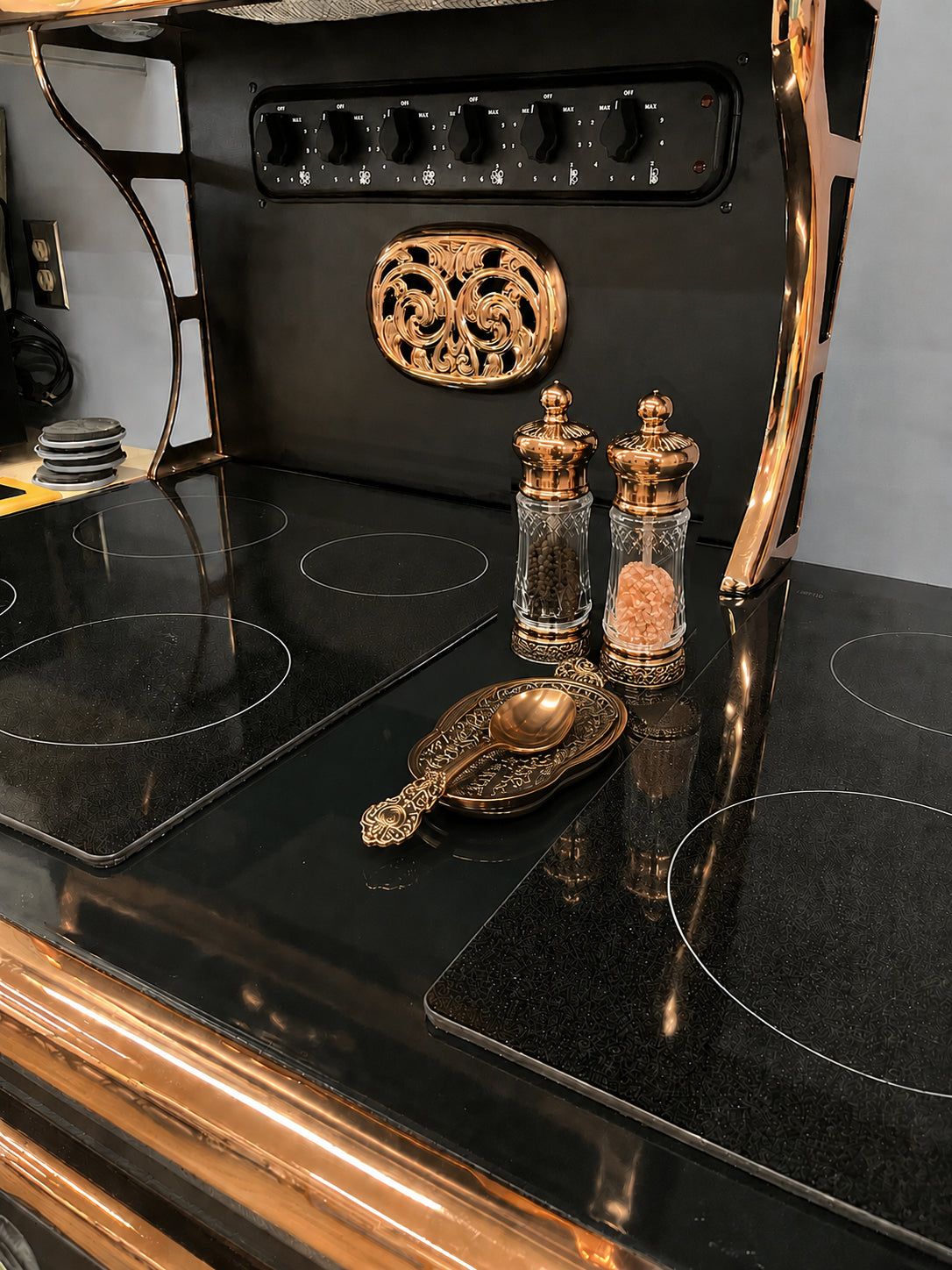

High-Speed Radiant Electric Elements
“Feather Touch” Electronic Control Panel
Self-Cleaning True Convection Oven
Genuine Nickel Trims
Decorative Metal Trims
Antique Copper Trim Package
Door Frames
Skirt
Victorian Trivet
Antiquing
Short Legs

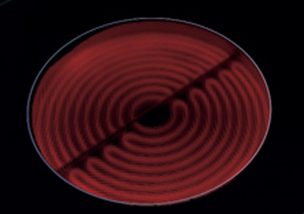

High-Speed Radiant Electric Elements

High-speed infinite-control elements under a ceramic top provide quick, uniform heat, precise cooking and easy clean-up. Heat to the elements is automatically reduced in the event of a pot boiling dry. Elements are rated at 1500 and 1800 watts.

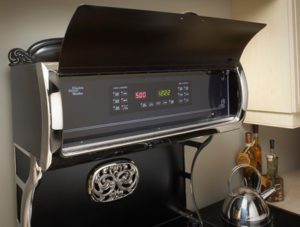

“Feather Touch” Electronic Control Panel

A 4.0 cu. ft. true convection oven offers the space and capacity you need. Convenient self-cleaning feature (with delayed start) is standard. Dual halogen lights let you see what’s cooking with the door open. The true convection oven has a third heating element surrounding the convection fan. Hot air circulates evenly, providing speed and consistent professional results.

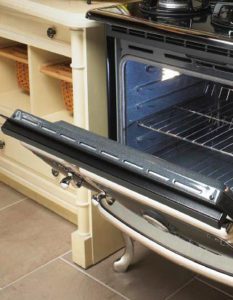

Self-Cleaning True Convection Oven

Just like the wood-burning cookstoves of years gone by, our Antique ranges are adorned with genuine Nickel trims (Antique Copper trims are optional.)

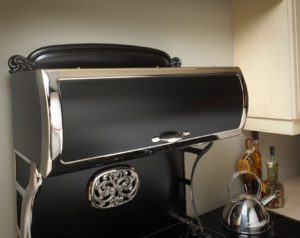

Genuine Nickel Trims

Conveniently located at eye level in the upper cabinet. Touch the screen lightly to select the oven mode, set the temperature, then touch “Start”. Oven temperatures are easily controlled from 100 to 500⁰ F. Indicator lights on the control panel and cooking surface tell you which function is being used. The cooktop light and exhaust fan are also controlled from this panel.

Decorative Metal Trims

The Antique Copper trim package includes the upper cabinet door frame and handle, cabinet brackets, cooktop trim rail, “ash catch” and decorative thermometer (not shown). Parts are nickel plated, copper plated over the Nickel, hand-rubbed with black oxide for just the right amount of “antiquing”, then lacquered to resist tarnishing. (Do not use abrasives, solvents or harsh chemicals to clean copper finishes.)

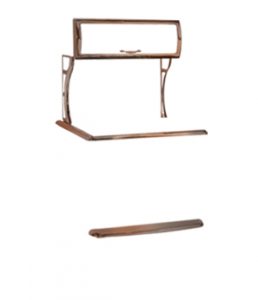

Antique Copper Trim Package

Choose the traditional Nickel metal trims (standard), or upgrade to our rich Antique Copper* trims. (Also available on optional door frames, front legs, front skirt and Victorian trivet.) * Our Antique Copper finish uses a unique six-step process to create just the right tone and texture: The steel parts are hand-polished to remove burrs and sharp edges, then nickel-plated, and then copper-plated over the nickel. Next a black oxide is applied over the copper, and then most of the oxide is meticulously hand-buffed off of the copper to leave a hint of “antiquing”. Finally, several fine coats of lacquer are applied over the copper and oxide to prevent tarnishing. It’s a lot of work, but well worth the result!

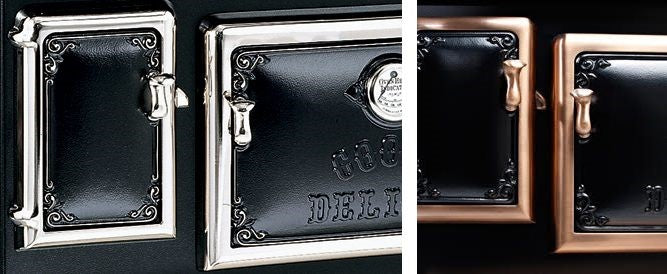

Door Frames

Give your range an added touch of elegance with polished Nickel or Antique Copper door frames.

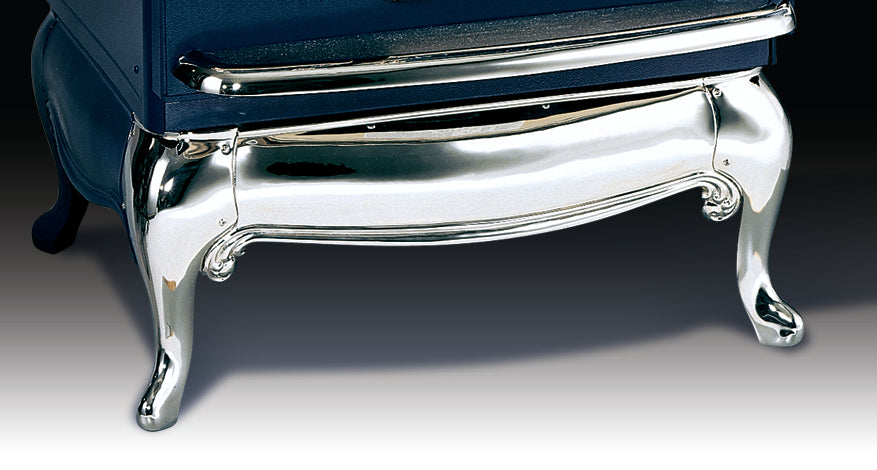

Skirt

Nickel legs and skirts nicely accent any of our ranges. Also available in Antique Copper.

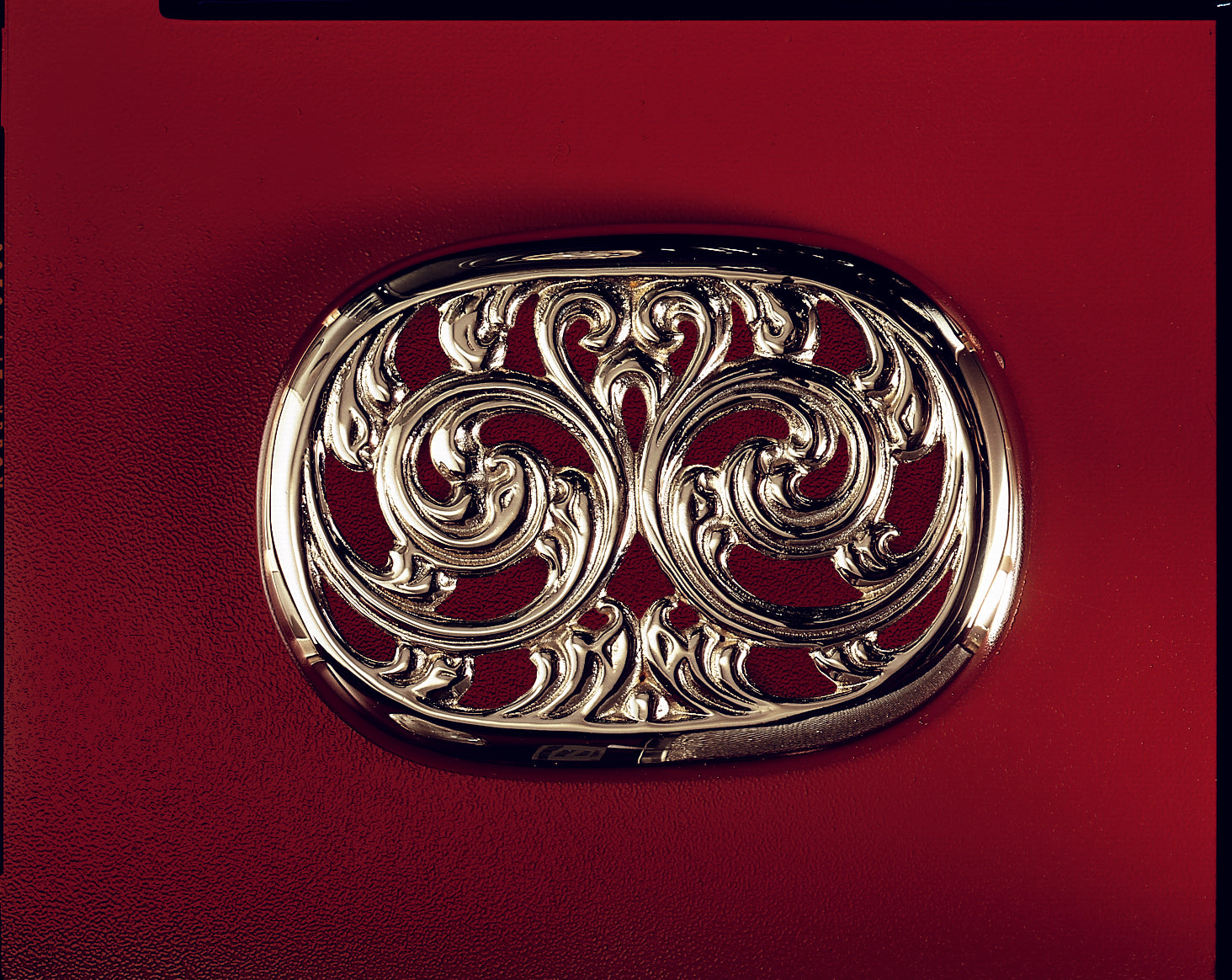

Victorian Trivet

Cast from an authentic circa 1880 pattern, then plated in Nickel or Antique Copper. The trivet looks spectacular when combined with matching legs, door frames and / or skirt.

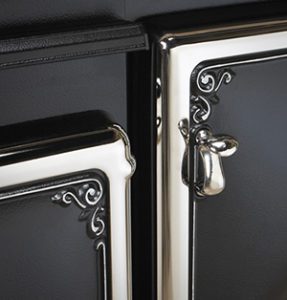

Antiquing

Decorative scrollwork around door castings is manually buffed to expose the silver metal beneath, giving ranges and wall ovens an even more antique appearance. Antiquing is not recommended with Copper accents, or on White or Bisque appliances. (Not available on refrigerators or microwaves.)

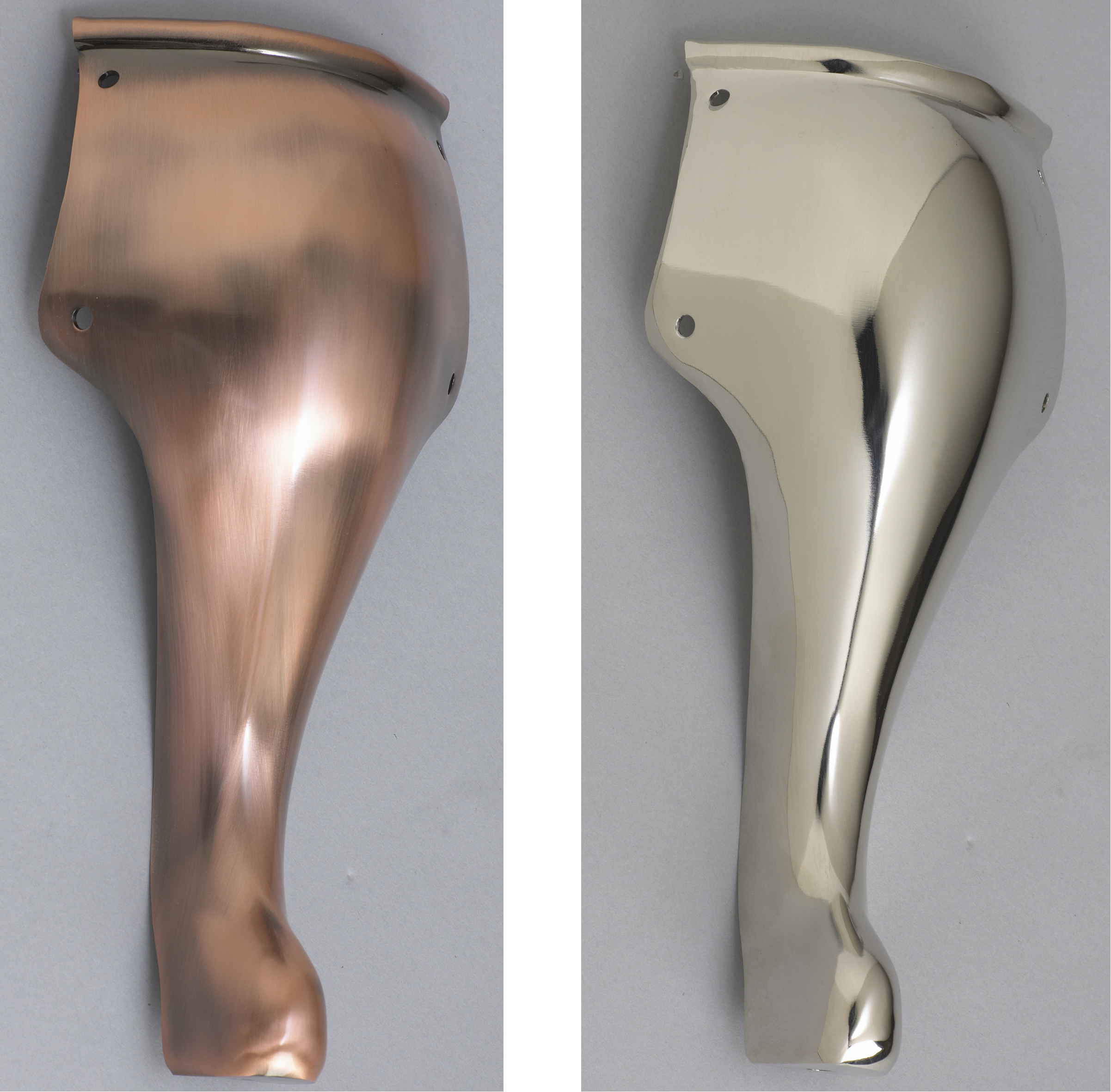

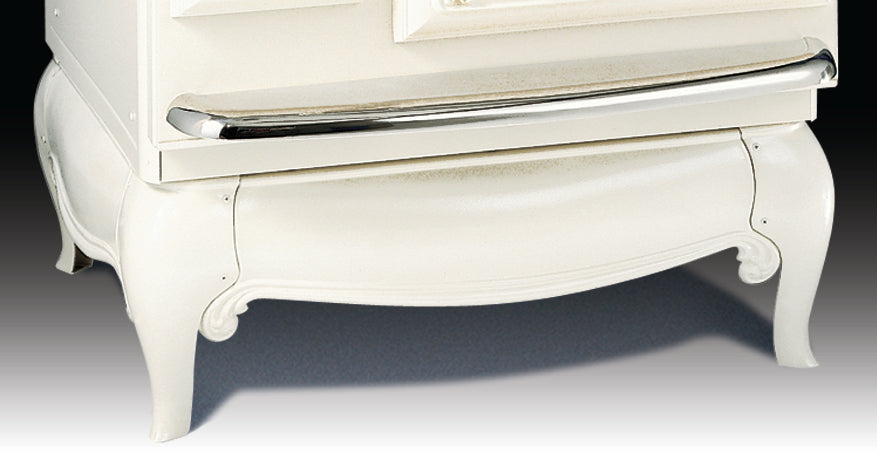

Short Legs

Anyone shorter than 5’2″ will appreciate the convenience of our short legs; 2″ shorter than standard. Available in all colors or metal trims. (Minimum base cabinet opening required with short legs is 30 3/4″; ideal opening is 33″.)

High-Speed Radiant Electric Elements
High-Speed Radiant Electric Elements

High-speed infinite-control elements under a ceramic top provide quick, uniform heat, precise cooking and easy clean-up. Heat to the elements is automatically reduced in the event of a pot boiling dry. Elements are rated at 1500 and 1800 watts.

“Feather Touch” Electronic Control Panel
“Feather Touch” Electronic Control Panel

A 4.0 cu. ft. true convection oven offers the space and capacity you need. Convenient self-cleaning feature (with delayed start) is standard. Dual halogen lights let you see what’s cooking with the door open. The true convection oven has a third heating element surrounding the convection fan. Hot air circulates evenly, providing speed and consistent professional results.

Self-Cleaning True Convection Oven
Self-Cleaning True Convection Oven

Just like the wood-burning cookstoves of years gone by, our Antique ranges are adorned with genuine Nickel trims (Antique Copper trims are optional.)

Genuine Nickel Trims
Genuine Nickel Trims

Conveniently located at eye level in the upper cabinet. Touch the screen lightly to select the oven mode, set the temperature, then touch “Start”. Oven temperatures are easily controlled from 100 to 500⁰ F. Indicator lights on the control panel and cooking surface tell you which function is being used. The cooktop light and exhaust fan are also controlled from this panel.

Decorative Metal Trims
Decorative Metal Trims

The Antique Copper trim package includes the upper cabinet door frame and handle, cabinet brackets, cooktop trim rail, “ash catch” and decorative thermometer (not shown). Parts are nickel plated, copper plated over the Nickel, hand-rubbed with black oxide for just the right amount of “antiquing”, then lacquered to resist tarnishing. (Do not use abrasives, solvents or harsh chemicals to clean copper finishes.)

Antique Copper Trim Package
Antique Copper Trim Package

Choose the traditional Nickel metal trims (standard), or upgrade to our rich Antique Copper* trims. (Also available on optional door frames, front legs, front skirt and Victorian trivet.) * Our Antique Copper finish uses a unique six-step process to create just the right tone and texture: The steel parts are hand-polished to remove burrs and sharp edges, then nickel-plated, and then copper-plated over the nickel. Next a black oxide is applied over the copper, and then most of the oxide is meticulously hand-buffed off of the copper to leave a hint of “antiquing”. Finally, several fine coats of lacquer are applied over the copper and oxide to prevent tarnishing. It’s a lot of work, but well worth the result!

Door Frames
Door Frames

Give your range an added touch of elegance with polished Nickel or Antique Copper door frames.

Skirt
Skirt

Nickel legs and skirts nicely accent any of our ranges. Also available in Antique Copper.

Victorian Trivet
Victorian Trivet

Cast from an authentic circa 1880 pattern, then plated in Nickel or Antique Copper. The trivet looks spectacular when combined with matching legs, door frames and / or skirt.

Antiquing
Antiquing

Decorative scrollwork around door castings is manually buffed to expose the silver metal beneath, giving ranges and wall ovens an even more antique appearance. Antiquing is not recommended with Copper accents, or on White or Bisque appliances. (Not available on refrigerators or microwaves.)

Short Legs
Short Legs

Anyone shorter than 5’2″ will appreciate the convenience of our short legs; 2″ shorter than standard. Available in all colors or metal trims. (Minimum base cabinet opening required with short legs is 30 3/4″; ideal opening is 33″.)

Minimum doorway clearance 31.5"

STANDARD 350 C.F.M. EXHAUST FAN

The standard 350 c.f.m. exhaust fan, included in the upper cabinet of your range, is factory-set to recirculate air through a charcoal filter. It can also be used to outside-vent exhaust if there is not more than one 90-degree elbow or more than ten feet between the range and the outside wall. This fan exhausts air only from the back of the range cabinet – it cannot be adapted for top-venting.

EXHAUST OUTLET LOCATION

Height from floor to center of duct opening is 62 5/8″ (60 5/8″ for short leg models). From left base cabinet countertop overhang to center of duct opening is 15 3/8″.

OPTIONAL #1518 520 C.F.M. IN-LINE EXHAUST BLOWER

The optional in-line exhaust blower replaces the standard 350 c.f.m. exhaust fan provided in your range cabinet and is to be installed by your contractor where your exhaust ducting exits the house. The inline blower should be ordered when you purchase your range – the range and wiring must be modified to accommodate the blower. (The blower can be shipped in advance of the range for installation – additional shipping charges will apply.)
If you are outside-venting your range with more than 10 feet of ducting, or more than one elbow… or if you simply prefer a more powerful exhaust system … you should include the optional 520 c.f.m. in-line exhaust blower. The #1518 In-Line Blower exhausts smoke and cooking odors quickly and quietly, exiting the house up to 35 feet from the range. If desired, the blower can be mounted in the basement or attic for powerful, whisper-quiet operation.

  • The blower can be mounted vertically, horizontally or at any angle.
  • Backward-curved airfoil blades move maximum air with minimal sound.
  • Fan and motor are precision balanced for quiet vibration-free operation.
  • Blower wiring attaches to the junction box on the back of your range.
Specifications:
  • 520 cubic feet / minute • 210 Watts, 115 Volts, 1.85 Amps, 60 Hz • Blower length: 9-1/8″
  • Blower diameter: 13-1/2″ (electrical box protrudes 1-3/4″D X 4-1/2″W from side of blower)
  • Inlet / outlet: 8″
  • Warranty: One year

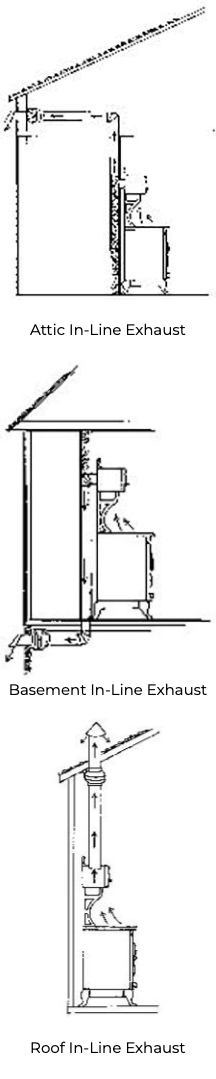

Attic In-Line Exhaust Blower Installation

The in-line blower and ducting can be mounted to or between (allowing for 14″ blower diameter) structural joists. Alternate installation: The exhaust duct can extend straight up through the roof (see below). This method will require a roof flashing and cap, not included.

Basement In-Line Exhaust Blower Installation

The exhaust duct runs down the wall behind the range into the basement, where it exits through the foundation wall. The in-line blower and ducting can be mounted to or between (allowing for 14″ blower diameter) structural joists.

Roof In-Line Exhaust Blower Installation (straight up from cabinet)

Log homes and homes with a cathedral ceiling often require a top-ducted exhaust. Advise your dealer if you are using this application – a 7″ round hole must be made in the top center of your range cabinet. We highly recommend locating your range in the kitchen prior to cutting the hole in the roof. (Ducting can also be routed through kitchen cabinets above range, if desired.) 7″ duct pipe, 7″ to 8″ increaser, roof cap and roof flashing not included.

In-line Blower Kit Contains:
  • Exhaust blower with 8″ inlet and outlet
  • Adapter elbow – attaches to back of range, converts range outlet to 3-1/4″ X 10″ standard duct size.
  • Duct adapter – converts 3-1/4″ X 10″ duct to 8″ round duct
  • Back draft damper with spring return – prevents cold air from entering house when blower is not in use.
  • Outside louver grill – covers the exhaust outlet at soffit or foundation wall. Louvers automatically close when the blower is not in use.
  • Duct extender – mounts to back of range cabinet, replacing deflector plate.
  • Duct pipe, roof flashing and roof cap (if required) are not included.
